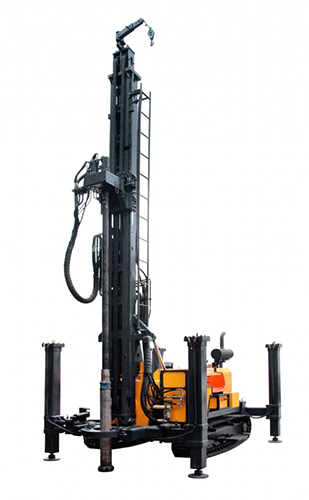

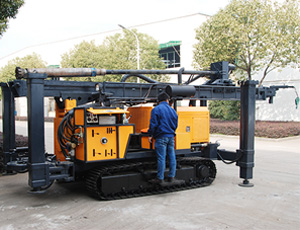

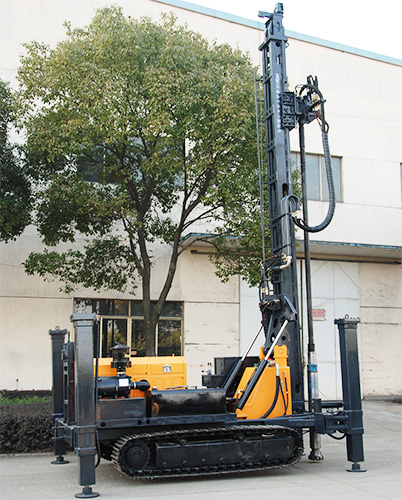

YCW600 Crawler Water Well Drilling Rig is a light, highly-efficient and multifunction drilling device, characterized by advanced structure, convenient use, high operating efficiency, reliability and durability, extensively applicable to drilling water wells, agricultural irrigation wells, geothermal air-conditioning wells and well holes of other purposes, especially applicable to water intake projects in mountain regions and at rock stratums. This drill adopts state-of-the-art hydraulic technology, and is equipped with large-torque hydraulic motor rotation and large-bore hydraulic cylinder propulsion, dramatically reducing labor intensity, shortening the assistant time, and improving construction efficiency and engineering quality. Its carriage rail adopts a vertical type, thus reducing the deviation ratio of boring.
Technical Parameters of KW600/YCW600 Crawler Water Well Drilling Rig
Parameters |
Unit |
YCW600 |
Drilling depth maximum |
m |
450 |
Drilling diameter |
mm |
φ130-350 |
Working Working pressure |
mp |
1.05-3.45 |
Air consumption |
m3/min |
16-76.4 |
Drill rod length |
m |
3000 |
Dia. of drill rod |
mm |
φ114/φ102/φ89 |
Propeller shaft pressure |
t |
0~7.5 |
Lifting force |
t |
15.3 |
Cylinder tensile force |
t |
62(4pcs) |
Propeller shaft pressure |
m |
1.4 |
Slide stroke |
mm |
4440 |
Slow lifting speed |
m/min |
3.3 |
Slow forward speed |
m/min |
0~6.7 |
Fast lifting speed |
m/min |
24.1 |
Fast forward speed |
m/min |
49 |
Rotary output torque |
N·m |
8600(4300) |
Rotary output speed |
Rev / min |
38~61(76~120) |
Hoist lifting force |
t |
1 |
Diesel engine |
---- |
YC4A150-T300 |
Parameter of engine |
---- |
113Kw/2100rpm |
Travel speed |
km/h |
0~2 |
Climbing capacity |
℃ |
20 |
Weight |
t |
10 |
Overall dimesion |
m |
7.3×2.25×2.75 |
Applicable condition |
Loose layers and rock |
|
Drilling mode |
DTH and Mud pump |
|
Hammer | Medium -high pressure series |
