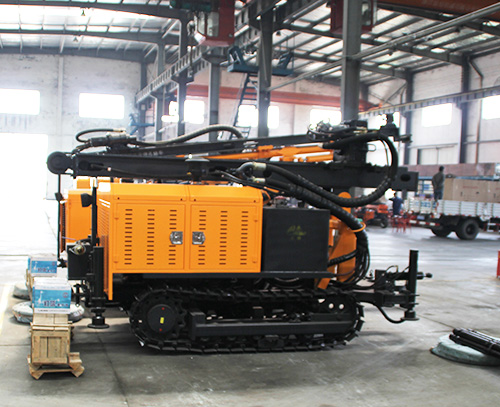

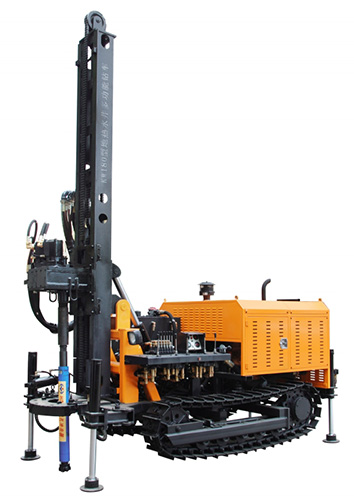

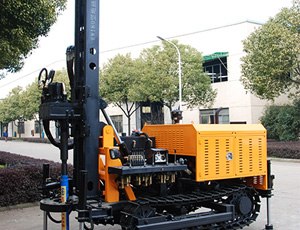

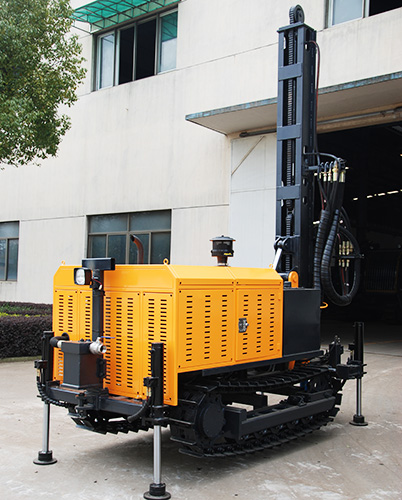

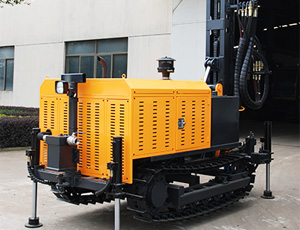

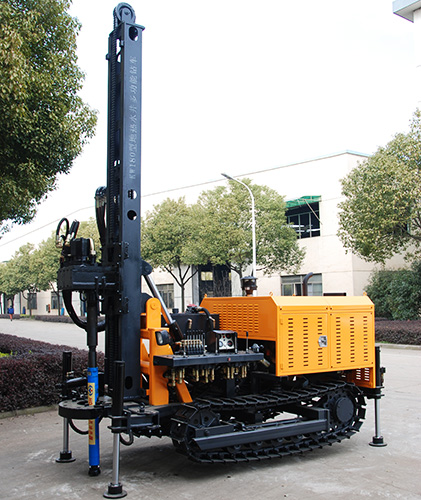

KW180/YCW180 Crawler Water Well Drilling Rig is a light, highly-efficient and multifunction drilling device, characterized by advanced structure, convenient use, high operating efficiency, reliability and durability, extensively applicable to drilling water wells, agricultural irrigation wells, geothermal air-conditioning wells and well holes of other purposes, especially applicable to water intake projects in mountain regions and at rock stratums. This drill adopts state-of-the-art hydraulic technology, and is equipped with large-torque hydraulic motor rotation and large-bore hydraulic cylinder propulsion, dramatically reducing labor intensity, shortening the assistant time, and improving construction efficiency and engineering quality.
Technical Parameters of KW180/YCW180 Crawler Water Well Drilling Rig
Parameters |
Unit |
KW180 |
Drilling depth maximum |
m |
180 |
Drilling diameter |
mm |
φ110-202 |
Working Working pressure |
mp |
1.05-2.46 |
Air consumption |
m3/min |
16-30 |
Drill rod length |
m |
2 |
Dia. of drill rod |
mm |
φ89/φ76 |
Propeller shaft pressure |
t |
0~2.5 |
Lifting force |
t |
5 |
Cylinder tensile force |
t |
32(4pcs) |
Propeller shaft pressure |
m |
0.4 |
Slide stroke |
mm |
2380 |
Slow lifting speed |
m/min |
8 |
Slow forward speed |
m/min |
0~15 |
Fast lifting speed |
m/min |
26 |
Fast forward speed |
m/min |
51 |
Rotary output torque |
N·m |
4200 |
Rotary output speed |
Rev / min |
33~67 |
Hoist lifting force |
t |
--- |
Diesel engine |
---- |
Yuchai 4DKCG2-80 |
Parameter of engine |
---- |
58Kw/2400rpm |
Travel speed |
km/h |
0~2.5 |
Climbing capacity |
℃ |
20 |
Weight |
t |
4.5 |
Overall dimesion |
m |
2.7×1.55×2.35 |
Applicable condition |
Loose layers and bedrock |
|
Drilling mode |
Rotation hydraulique et percer par frappeur ou forage à boue |
|
Supporting Hammer |
Medium -high pressure series |
