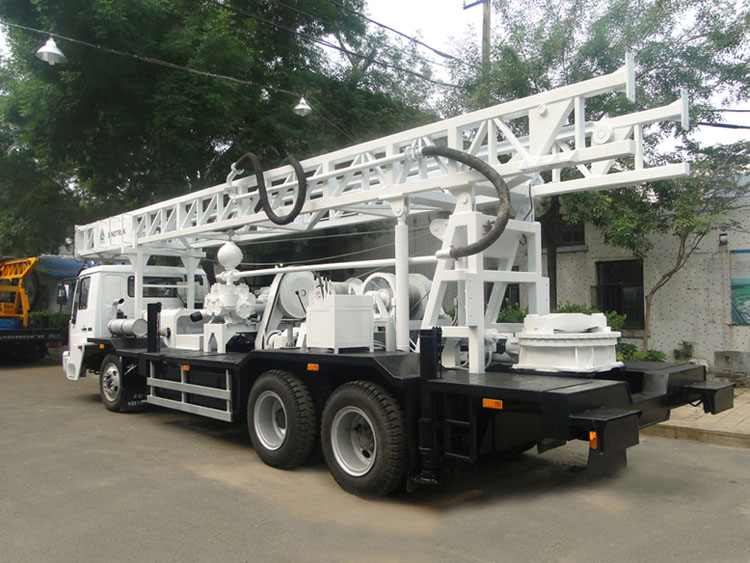

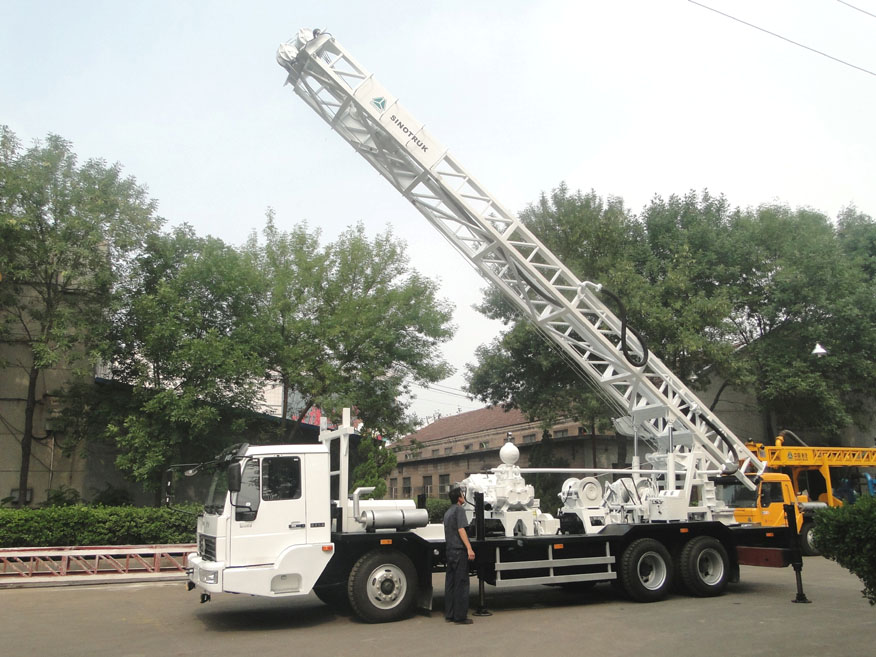

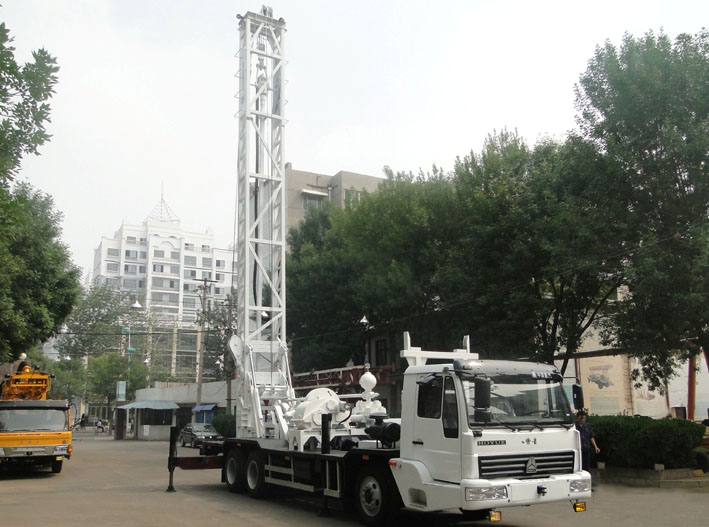

◎ truck mounted drilling rig is designed by our engineers; it is adopt truck mounted and is a rotary drilling rig.
◎ The truck chassis is adopt the special crane chassis of brand SINOTRUK, the main transmit, transmission power, gearbox, sets of windlass, mud pump, sewage pump，mast are setup on the chassis.
◎ This rig is a rotary drilling rig with directional circulation, which is equipped with BW900/25 mud pump, It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.
◎ The power of drilling rig comes from the truck engine, the rig setups distribute implement and hydraulic system.
◎ We can upset the spare electric engine and clutch implement according to client's requirement, so that the rig can work with diesel engine or electric engine.
◎ We can setup a generator (15kw) , so that it is convenience to illuminate or work at night.
◎ The adding pressure implement is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering formation through using the adding pressure implement.
◎ The master driving of rig is mechanical, the four jacks and mast are hydraulic operated. Distribute box, sewage pump, master driving clutch system are air operated.

◎ The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is populated by domestic and foreign clients.

Technical Parameters of 300M Truck Mounted Water Well Drilling Rig

Technical parameter
Drilling depth(M)			80	300
Drilling diameter(mm)			1500	500
Speed of turntable(r/min)			21.2；36；63.2；100.6；155；20.2(reverse)
Torque of turntable(KN.m)			18；10.6；6；3.8；2.5；18.9(reverse)
Single rope lifting capacity of windlass(KN)			30
the max torque of whole machine(KN.m)			40.55
The lifting capacity of hook(KN)			180
Bearing capacity of mast (KN)			180
The height of mast (mm)			11500
Bearing capacity (t)			25
Pipe	Kelly (mm)		108×108×7500
	Assistant pipe (mm)		Ф89×10×5500
Hydraulic pump	Model		CB-HP50/32Z
	Pump delivery (ml/r)		50/32
	Rated speed (r/min)		3500-3700
	Rated pressure(MPa)		20
BW850/2A plungerpump	Diameter of cylinder (mm)		150
	Stroke of piston (mm)		180
	Theory of flow (L / min)		600 850
	Rated pressure (Mpa)		3 2
	Pounding times (min-1)		58 82
	Diameter of suction tube (mm)		127
	Diameter of drain pipe (mm)		64
	Input speed (r / min)		470
	Input power (kw)		40
	Overall dimensions (mm)		2000*1030*1400
	Weight (t)		1.5
Truck chassis	Model		TAZ5191TXJ
	Drive form		6×4
	Engine	Model	TBD226B-6Ⅱ
		Rated power(KW)	132
		Speed (r/min)	2300
	Size (L*W*H）(mm)		11110×2490×2500
Electric generator	Model		MF
	Rated power (kw)		15
	Rated voltage(v)		400
	Rated current(A)		27
	Speed (r/min)		1500
	Frequency(Hz)		50
	Protection level		IP21
	Insulation Class		H
The best working gear (or speed)			5th gear(1000-1400r/min)
The highest speed(Km/h)			75
Weight (kg)			19340
Transport size(L*W*H）(mm)			12160*2490*3440
Working size(L*W*H）(mm)			11110*2490*13110
