Refrigerated air Dryer (cooler and dry system)

Home » Products » Auxiliary Equipment » Refrigerated air Dryer (cooler and dry system)

Get Operation Manual

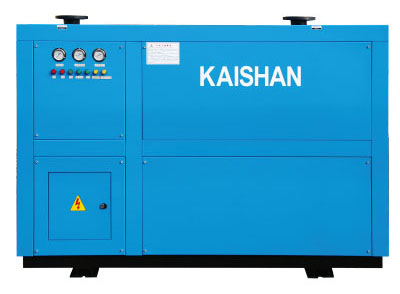

Air Cooling Cold Dryer

Water Cooling Cold Dryer

Work Conditions and Technical Indicators

Air inlet temperature	Normal temperature ≤45°C High temperature ≤80°C
Cooling mode	Air cooling
Ambient temperature	≤38°C
Pressure dew point	2-10°C
Air inlet pressure	0.6~1.0 MPa
Pressure loss	Work pressure ≤ 5%

Note: The Air Cooling Cold Dryer of 80 cubic meters and above is of case plate-free skid-mounting mode, and other special standards can be customized.

Parameters of normal temperature air cooling cold dryer

Model and item	Air processing volume (Nm3/min)	Voltage (V)	Refrigeration power (HP)	Fan power (W)	Air hose caliber	Net equipment weight (KG)	Length (mm)	Width (mm)	High (mm)	Wind (Nm³/h)
KSAD-2SF	2.5	220	0.75	U55	Rpr	110	650	430	700	965
KSAD-3SF	3.6	220	1	1x150	Rpr	130	850	450	700	3110
KSAD-4.5SF	5	220	1.5	1x250	Rpif	150	1000	490	730	5180
KSAD-6SF	6.8	220	2	1x250	Rpif	160	1050	550	770	6220
KSAD-8SF	8.5	220	2.5	2M90	Rp2-	200	1200	530	946	8470
KSAD-12SF	12.8	380	3	2M90	Rp2-	250	1370	530	946	8470
KSAD-15SF	16	380	3.5	2M90	DN65	320	1500	780	1526	8470
KSAD-20SF	22	380	4.2	2M90	DN65	420	1540	790	1666	8470
KSAD-25SF	26.8	380	5.3	2x250	DN80	550	1610	860	1610	10560
KSAD-30SF	32	380	6.7	2x250	DN80	650	1610	920	1872	10560
KSAD-40SF	43.5	380	8.3	3x250	DN100	750	2160	960	1863	15840
KSAD-50SF	53	380	10	3x250	DN100	830	2240	960	1863	15840
KSAD-60SF	67	380	13.3	3x460	DN125	1020	2360	1060	1930	18000
KSAD-80SF	90	380	20	4x550	DN125	1300	2040	1490	1930	40000

Parameters of High Temperature Air Cooling Cold Dryer

Model and item	Air processing volume (Nm³/min)	Voltage (V)	Refrigeration power (HP)	Fan power (W)	Air hose caliber	Net equipment weight (KG)	Length (mm)	Width (mm)	High (mm)	Wind (Nm³/h)
KSAD-0.5HF	0.65	220	0.25	1x55	Rp1/2"	45	580	350	545	965
KSAD-1HF	1.2	220	0.33	1x90	Rp1"	70	640	380	565	1890
KSAD-2HF	2.5	220	0.75	2x55	Rp1"	140	845	570	780	1930
KSAD-3HF	3.6	220	1	2x150	Rp1"	160	1020	600	790	6220
KSAD-4.5HF	5	220	1.5	4x90	Rplf	180	1000	500	990	7560
KSAD-6HF	6.8	220	2	4x150	Rp1+"	210	1100	500	1000	12400
KSAD-8HF	8.5	220	2.5	4x190	Rp2"	250	1200	640	1250	16940
KSAD-12HF	12.8	380	3	4x190	Rp2"	270	1330	650	1250	16940
KSAD-1SHF	16	380	3.5	4x190	DN65	360	1635	880	1540	16940
KSAD-20HF	22	380	4.2	4x190	DN65	460	1640	890	1610	16940
KSAD-25HF	26.8	380	5.3	4x250	DN80	600	1860	990	1668	21120
KSAD-30HF	32	380	6.7	4x250	DN80	720	1810	1310	1728	21120
KSAD-40HF	43.5	380	8.3	6x250	DN100	870	2360	1410	2100	31680
KSAD-50HF	53	380	10	6x250	DN100	970	2360	1460	2000	31680
KSAD-60HF	67	380	13.3	7x460	DN125	1200	2460	1560	2160	42000
KSAD-80HF	90	380	20	8x550	DN125	1460	2540	1640	2200	80000

Work conditions and technical indicators

Air inlet temperature	Normal temperature ≤45°C High temperature ≤80°C
Cooling mode	Water cooling
Pressure dew point	2-10°C
Air inlet pressure	0.6~1.0 MPa
Pressure loss	Work pressure ≤ 5%
Cooling water inlet temperature	≤32°C
Cooling water inlet pressure	0.2~0.4 MPa
Cooling water	Industrial circulating water

Note: The water cooling colddryer of 200 cubic meters and above is of case plate-free skid-mounting mode, and other special standards can be customized.

Parameters of normal temperature water cooling cold dryer

Model and item	Air processing volume (Nm³/min)	Voltage (V)	Refrigeration power (HP)	Fan power (W)	Air hose caliber	Net equipment weight (KG)	Length (mm)	Width (mm)	High (mm)	Wind (Nm³/h)
KSAD-2SF	2.5	220	0.75	U55	Rpr	110	650	430	700	965
KSAD-3SF	3.6	220	1	1x150	Rpr	130	850	450	700	3110
KSAD-4.5SF	5	220	1.5	1x250	Rpif	150	1000	490	730	5180
KSAD-6SF	6.8	220	2	1x250	Rpif	160	1050	550	770	6220
KSAD-8SF	8.5	220	2.5	2M90	Rp2-	200	1200	530	946	8470
KSAD-12SF	12.8	380	3	2M90	Rp2-	250	1370	530	946	8470
KSAD-15SF	16	380	3.5	2M90	DN65	320	1500	780	1526	8470
KSAD-20SF	22	380	4.2	2M90	DN65	420	1540	790	1666	8470
KSAD-25SF	26.8	380	5.3	2x250	DN80	550	1610	860	1610	10560
KSAD-30SF	32	380	6.7	2x250	DN80	650	1610	920	1872	10560
KSAD-40SF	43.5	380	8.3	3x250	DN100	750	2160	960	1863	15840
KSAD-50SF	53	380	10	3x250	DN100	830	2240	960	1863	15840
KSAD-60SF	67	380	13.3	3x460	DN125	1020	2360	1060	1930	18000
KSAD-80SF	90	380	20	4x550	DN125	1300	2040	1490	1930	40000

Parameters of high temperature water cooling cold dryer

Model and item	Air processing volume (Nm³/min)	Voltage (V)	Refrigeration power (HP)	Fan power (W)	Air hose caliber	Net equipment weight (KG)	Length (mm)	Width (mm)	High (mm)	Wind (Nm³/h)
KSAD-0.5HF	0.65	220	0.25	1x55	Rp1/2"	45	580	350	545	965
KSAD-1HF	1.2	220	0.33	1x90	Rp1"	70	640	380	565	1890
KSAD-2HF	2.5	220	0.75	2x55	Rp1"	140	845	570	780	1930
KSAD-3HF	3.6	220	1	2x150	Rp1"	160	1020	600	790	6220
KSAD-4.5HF	5	220	1.5	4x90	Rplf	180	1000	500	990	7560
KSAD-6HF	6.8	220	2	4x150	Rp1+"	210	1100	500	1000	12400
KSAD-8HF	8.5	220	2.5	4x190	Rp2"	250	1200	640	1250	16940
KSAD-12HF	12.8	380	3	4x190	Rp2"	270	1330	650	1250	16940
KSAD-1SHF	16	380	3.5	4x190	DN65	360	1635	880	1540	16940
KSAD-20HF	22	380	4.2	4x190	DN65	460	1640	890	1610	16940
KSAD-25HF	26.8	380	5.3	4x250	DN80	600	1860	990	1668	21120
KSAD-30HF	32	380	6.7	4x250	DN80	720	1810	1310	1728	21120
KSAD-40HF	43.5	380	8.3	6x250	DN100	870	2360	1410	2100	31680
KSAD-50HF	53	380	10	6x250	DN100	970	2360	1460	2000	31680
KSAD-60HF	67	380	13.3	7x460	DN125	1200	2460	1560	2160	42000
KSAD-80HF	90	380	20	8x550	DN125	1460	2540	1640	2200	80000
